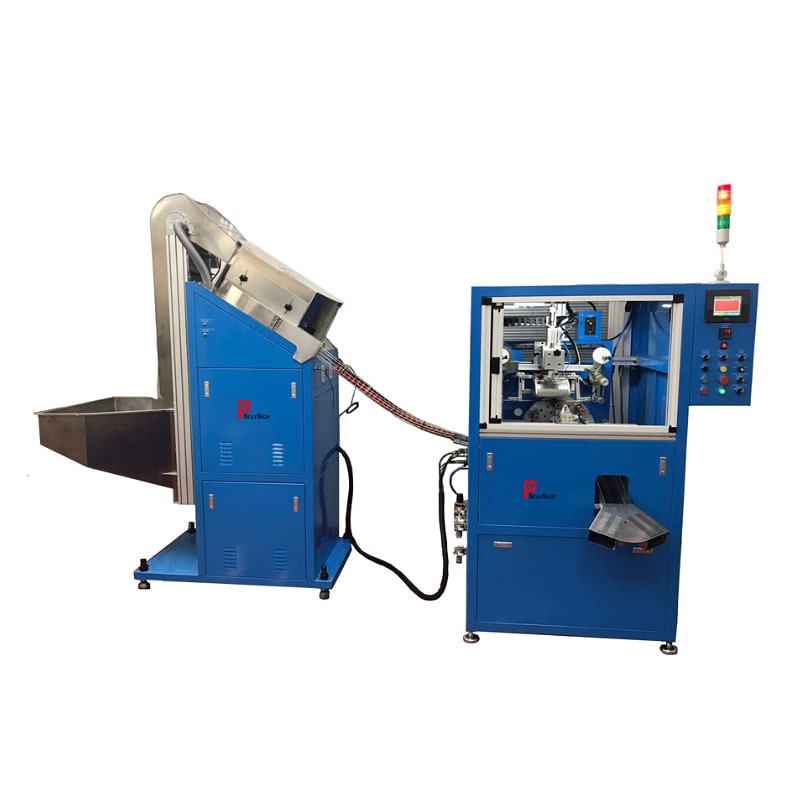

Top and Side Hot Stamping Machine for Cap
Application

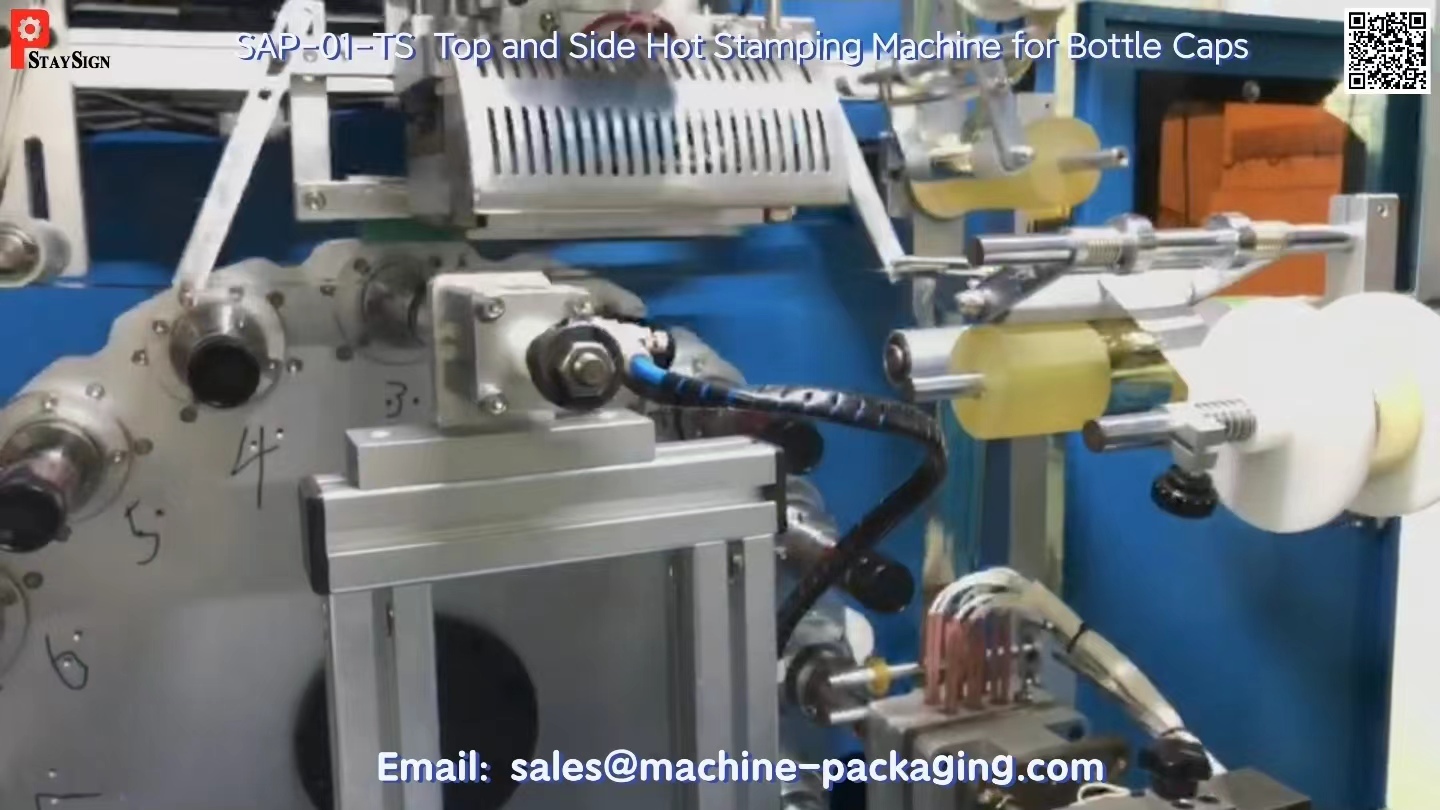

This hot foil stamping machine is designed for stamping on the side and top surfaces of the cylindrical bottle caps. There are 16 mandrels to hold caps to be stamped with foil. It can make hot stamping on the cap with one whole circle. Meanwhile, do stamping on top of the cap. The machine is also can be customized for screen printing and pad printing. Products to print: plastic caps, aluminum caps, bottle covers, cap plugs, plastic lids, tube end caps, plastic pipe caps, plastic caps and plugs, aluminum caps, bottle lids, bottle closure, wine capsule, wine caps, etc.
Description
Reviews
Description
1. Operation through PLC and touch screen display.
2. Automatic cap uploading and feeding system supported, automatic cap removing ejector.
3."No item no stamp/print" warning system.
4. With a safety door warning system, if a user opens any door of the machine, the machine stops running at once.
5. Low air pressure, lack of foil, cap not loaded, low temperature, all these happened machine alarms.
6. Cap counting system, pieces per roll of foil counting system.
7. Different sizes of caps are available for the machine by changing corresponding tooling parts.
Parameters
| Speed of stamping: | 2400-3300pcs/h |
| Size of stamping: |
Max. diameter Φ15-34mm Max. length Φ25-60mm |
| Air consumption: | 0.6-0.8mpa |
| Power supply: | 380v 3p 50hz (or customized) |
| Dimension: |
Main machine:1000*1000*1800mm Uploading machine:2200*1000*1700mm |
| Weight: | 1350kgs approx. |
Printed samples
For more operating video of our machine please visit YouTube from below link
Package & Delivery
Every machine is under standard package standard.
Machine vacuumed if necessary and packed into fumigation free wooden package.
Package delivered to seaport/airport by direct line truck.
For more questions and details please ask us directly, we will reply you ASAP.
