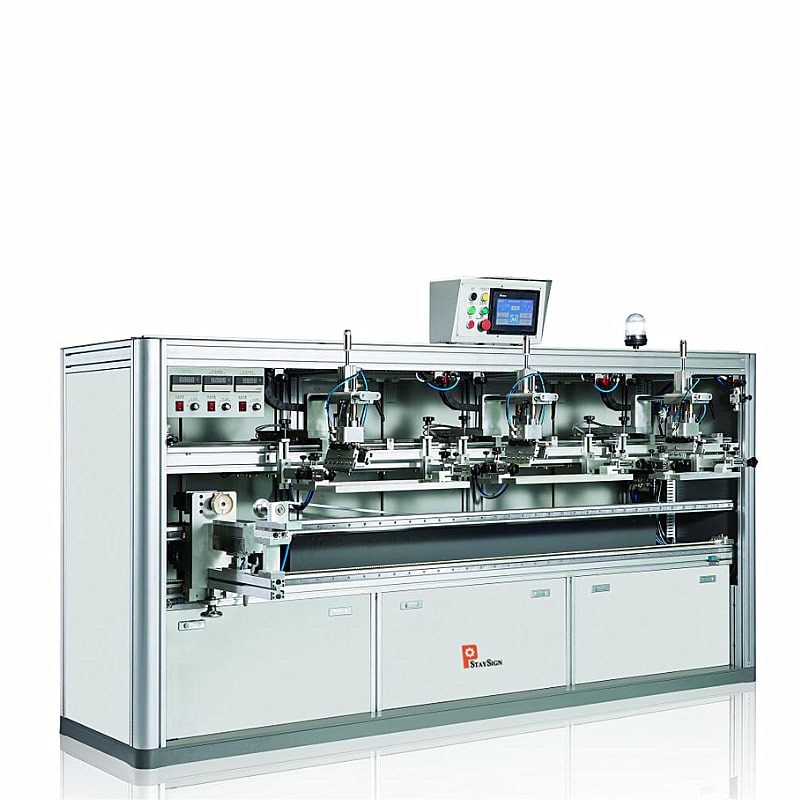

Servo Driven Automatic Screen Printing Machine
Application
This automatic screen printing machine is designed with a servo motor controlling system, which makes items printed more accurately and precise. It is suitable for printing on plastic, glass metal products etc. The item to print without registration point is also not a problem to print the second or third color. Meanwhile, after which we have optional curing systems like LED, UV, and high temperature. The handling by the machine operator is particularly easy due to the clear arrangement of changing parts. This reduces the time for set up and maintenance. Products to print: glass bottles, plastic milk bottles, cosmetic bottles, drug vials, beverage bottles, glass cups, etc.
Description
Reviews
Description
1. Built with Servo drive
2. Controlled by PLC and touchscreen display
3. With three printing platforms for three colors
4. With an automatic loading and unloading system
5. Three kinds of curing systems to choose from accordingly—UV curing, LED curing, high temperature drying.
6. With only one set of fixtures change for other products easily.
Parameters
| Speed of printing: | 900pcs/hr. |
| Size of printing: |
Max. Diameter 100mm Max. Length 320mm |
| Air consumption: | 0.6mpa |
| Power supply: | 380v 50Hz |
| Curing system: | LED, UV or High temperature |
Printed samples
For more operating video of our machine please visit YouTube from below link
Package & Delivery
Every machine is under standard package standard.
Machine vacuumed if necessary and packed into fumigation free wooden package.
Package delivered to seaport/airport by direct line truck.
For more questions and details please ask us directly, we will reply you ASAP.
