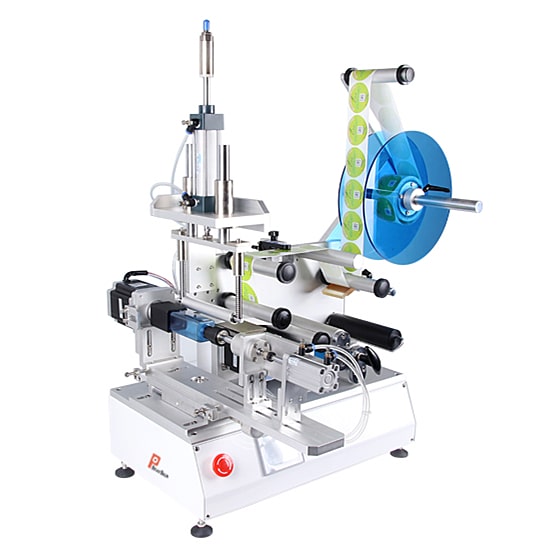

Semi Automatic Square Bottle Labeling Machine
Application
This semiautomatic labeling machine is specially designed for labeling on round, square and some irregular shaped item. It is widely used in food, cosmetic, chemical, pharmaceutical and other industries. Machine is easy to control and operate, its desktop type working state enjoys economical and high stable performance.
Date printer can be added to print production date, batch lot and expiry date while labeling.
Description
Reviews
Description
1. Control system we use Panasonic from Japan, which keeps high stability and a low failure rate.
2. Machine built with touch screen display, direct visual interface for easy operation. Optional languages settled. It is easy to adjust all electrical parameters and has a counting function, which is helpful for production management.
3. Detection system we use a German LEUZE/Italian Datalogic label sensor and a Japanese Panasonic product sensor, which are sensitive to label and product, so that can ensure high accuracy and stable labeling performance.
4. The machine will alarm when a problem occurs, such as a label spill, label broken, or other malfunctions.
5. Main parts of the machine we use stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust.
6. Equip with a voltage transformer to adapt to local voltage.
Parameters
| Speed of labeling: | 900-1800pcs/h |
| Size of bottle: | Length 20-200mm Width 20-150 Height 0.2-120 |
| Length 15-200mm | |
| Size of label: | Width/height 15-130mm |
| Type of label: | adhesive sticker, transparent or opaque |
| Size of label roll: | ID: Ø76mm; OD: ≤240mm |
| Labeling tolerance: | ±0.5mm |
| Power supply: | 220v 50hz 660w |
| Dimension: | 830*720*950mm |
| Weight: | ≈50kgs |
Printed samples
For more operating video of our machine please visit YouTube from below link
Package & Delivery
Every machine is under standard package standard.
Machine vacuumed if necessary and packed into fumigation free wooden package.
Package delivered to seaport/airport by direct line truck.
For more questions and details please ask us directly, we will reply you ASAP.
