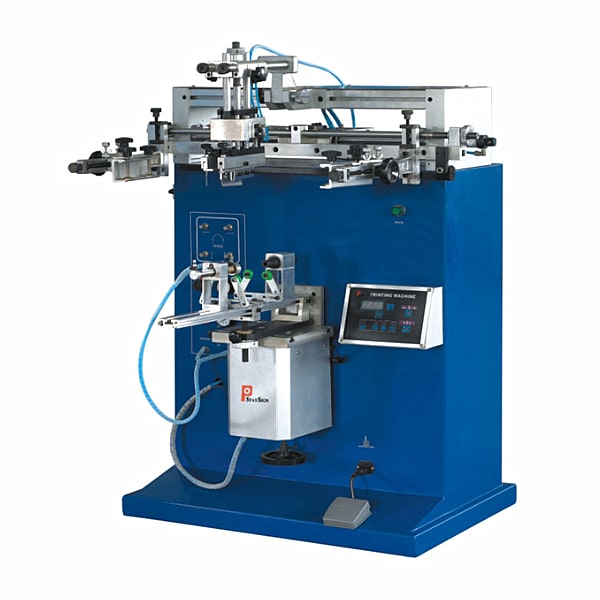

Semi Automatic Curved and Flat Screen Printing Machine
Application
This semiautomatic screen printing machine is adopted with pneumatic operating system, thus, a set of air compressor is necessary to be having for the whole printing process. It is applied to print with one color or multicolor on the surface of round, curved and cylindrical shape of products like pen, cup, mug, bottle, aluminum can, fire extinguisher, bucket, paint pail etc. Meanwhile, machine of this series is also supported to print flat item like ruler, circuit board, flat bottle, etc.
Description
Reviews
Description
1. Microprocessor controls each function with high automation and easy operation.
2. With 4-digit automation counter.
3. Ink squeegee reclaims automatically, worktable elevates to the right position to assure consistent print quality.
4. Stroke and speed of printing are adjustable to meet different requirements.
5. Fine adjustment is available for squeegee moving left and right to make substrate alignment easily.
6. Fine adjusted available for worktable going up and down as well as plane angle, frame towards and backwards, left and right , up and down with high printing accuracy.
Parameters
|
Model |
SAP-250 |
SAP-400 |
SAP-600 |
SAP-800 |
SAP-1100 |
|
Max. size of printing |
Φ70*200(mm) |
Φ120*200(mm) |
Φ180*350(mm) |
Φ240*350(mm) |
Φ330*350(mm) |
|
Max. size of diameter |
Φ70mm |
Φ120mm |
Φ180mm |
Φ240mm |
Φ330mm |
|
Max. size of screen frame |
500*380mm |
600*380mm |
900*380mm |
1000*380mm |
1200*380mm |
|
Speed of printing |
1200pcs/h |
1200pcs/h |
1000pcs/h |
800pcs/h |
700pcs/h |
|
Max. height of product |
≤400mm |
≤400mm |
≤400mm |
≤400mm |
≤400mm |
|
Air pressure |
0.6~0.8mpa |
0.6~0.8mpa |
0.6~0.8mpa |
0.6~0.8mpa |
0.6~0.8mpa |
|
Power supply |
220V/50hz 60w |
220V/50hz 60w |
220V/50hz 60w |
220V/50hz 60w |
220V/50hz 60w |
Printed samples
For more operating video of our machine please visit YouTube from below link
Package & Delivery
Every machine is under standard package standard.
Machine vacuumed if necessary and packed into fumigation free wooden package.
Package delivered to seaport/airport by direct line truck.
For more questions and details please ask us directly, we will reply you ASAP.
