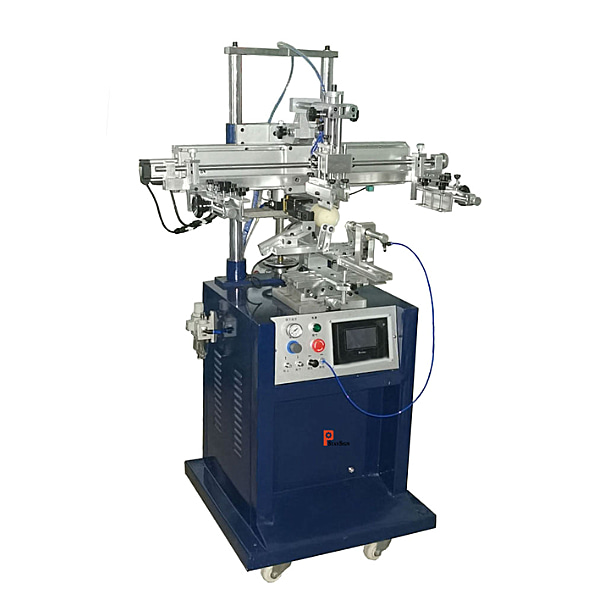

Semi Automatic Aluminum Drink Can Screen Printing Machine
Application
This screen printing machine is built with servo module, running without impact, more accurate for printing position, it does not request printed item have any positioning point. Machine can do multicolor properly. It is applied to print with one color or multicolor on the surface of round, curved and cylindrical shape of products like pen, cup, mug, bottle, aluminum can, fire extinguisher, bucket, paint pail etc.
Description
Reviews
Description
1. Microprocessor controls each function with high automation and easy operation.
2. With 4-digit automation counter.
3. Ink squeegee reclaims automatically, worktable elevates to the right position to assure consistent print quality.
4. Stroke and speed of printing are adjustable to meet different requirements.
5. Fine adjustment is available for squeegee moving left and right to make substrate alignment easily.
6. Fine adjusted available for worktable going up and down as well as plane angle, frame towards and backwards, left and right , up and down with high printing accuracy.
Parameters
|
Model |
SAP-3040SV |
|
Max. size of printing |
Φ250*350(mm) |
|
Max. printing diameter |
Φ125mm |
|
Max. speed of printing |
1000pcs/h |
|
Air pressure |
0.4~0.6mpa |
|
Power supply |
220V/50hz 1000w |
|
Size of machine |
850*600*1520 |
|
Weight |
230kgs |

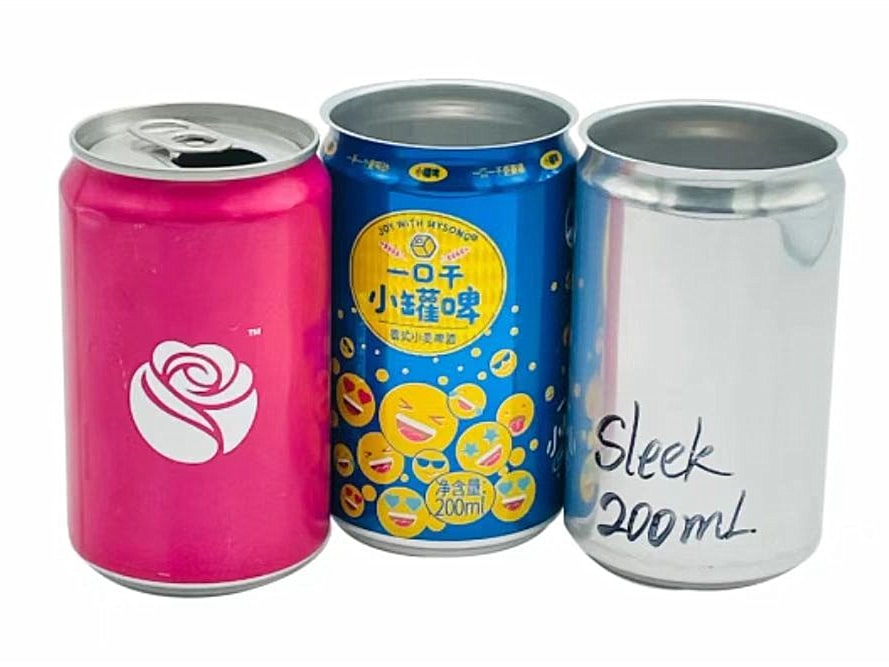

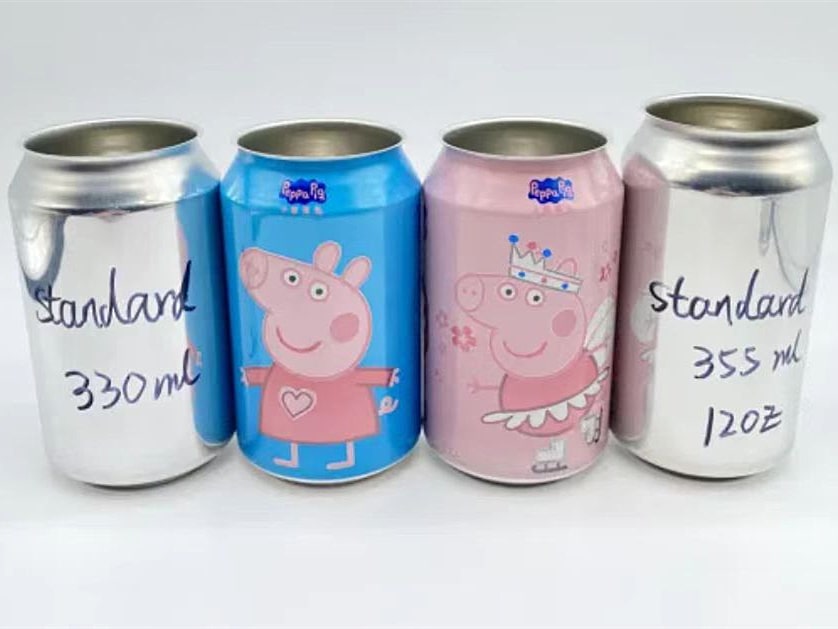

Printed samples
For more operating video of our machine please visit YouTube from below link
Package & Delivery
Every machine is under standard package standard.
Machine vacuumed if necessary and packed into fumigation free wooden package.
Package delivered to seaport/airport by direct line truck.
For more questions and details please ask us directly, we will reply you ASAP.
