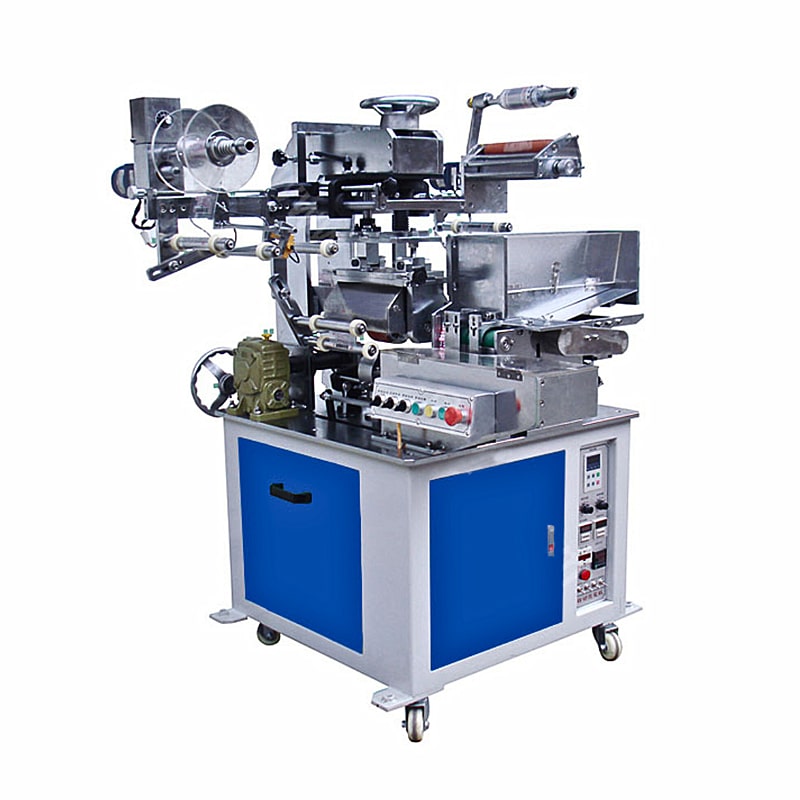

SAP-160 Automatic Pen Heat Transfer Machine
Application
This automatic pen heat transfer machine is suitable for all kinds of round products, including: pen, pencil, plastic penholder transfer, stainless steel penholder, and some tubes, it is also good for heat transfer printing for other materials.
Description
Reviews
Features
1. With electronic IC integrated controller multi-function program.
2. The whole machine is purely mechanical, with strong and stable pressure up to 350kgf.
3. The heat transfer pressure, temperature and heat transfer printing time are adjustable for safe and fast operation.
4. Built with Omron relays and other famous brand contactor electrical accessories
5. Automatic paper take-up is adjustable and adopts precision motor from China Taiwan.
6. Built with photoelectric tube (Taiwan Yangming electric eye, 250 high-precision movements per second)Precise tracking and control of thermal transfer paper with positioning points.
7. The height of heat transfer head is adjustable and can be used to make heat transfer for workpieces up to size of 300mm.
8. The electromagnetic switches we use Mindman from China Taiwan, it can precisely control, as well as German NASS coils are stably and durably used.
9. All screws are grade 12.9, which is stronger and more durable.
10. Equipped with emergency stop safety protection device to ensure the safety of the operator.
Parameters
|
Size of heat transfer: |
30*160mm |
|
Diameter of heat transfer: |
Φ8-30mm |
|
Heat transfer time: |
0-99s |
|
Time of foil take-up |
0-99s |
|
Delay time |
0-99s |
|
Height of temperature |
Room temperature-280℃ |
|
Capacity: |
30-60pcs/min |
|
Power supply: |
220V 50hz |
|
Weight: |
≈500kgs |
|
Dimension: |
1200*1400*1600mm |
Printed samples
For more operating video of our machine please visit YouTube from below link
Package & Delivery
Every machine is under standard package standard.
Machine vacuumed if necessary and packed into fumigation free wooden package.
Package delivered to seaport/airport by direct line truck.
For more questions and details please ask us directly, we will reply you ASAP.
