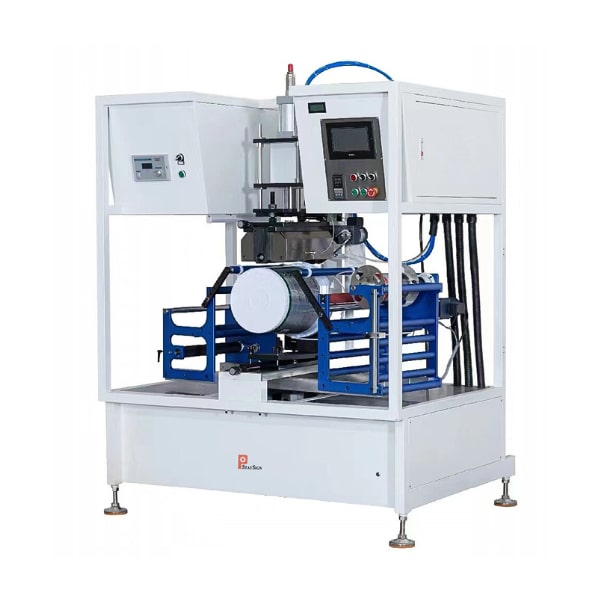

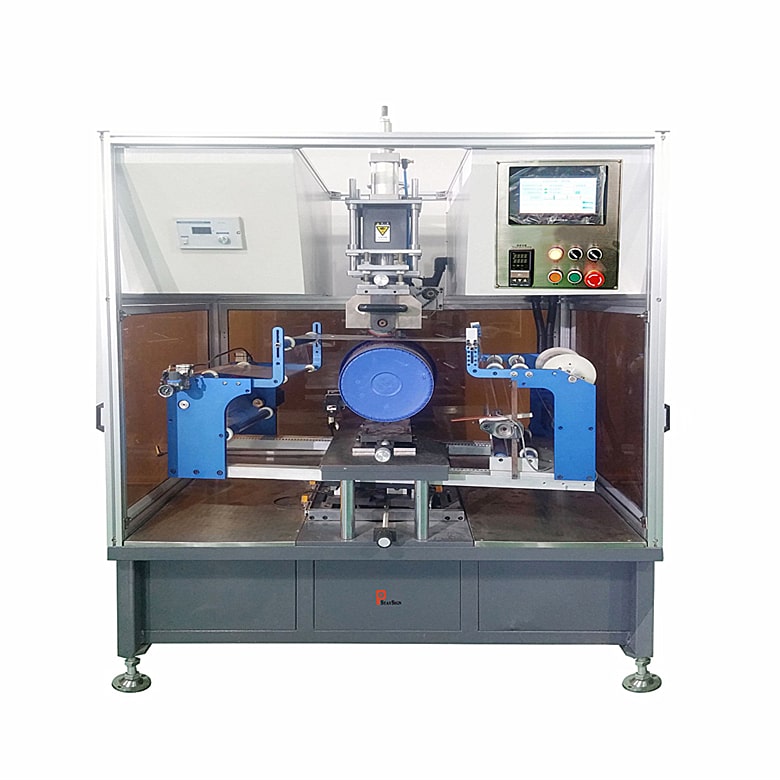

Plastic Bucket Servo Heat Transfer Machine
Application
This TRIAXIAL servo system controlled heat transfer machine is specially made for 5 gallon 20 litre bucket. Its high efficiency and stable performance are good for mass production.
Products to print: plastic bucket, pail, 5 gallon bucket, diaper pail, plastic pail, paint bucket, 3 liter water bottle, 20L bucket, 20 litre plastic containers etc.
Description
Reviews
Description
1. Panasonic PLC control system, it is easy to set data and operate, machine can calculate running trail automatically by inputting 3 parameters, which are perimeter of top and bottom, bucket and height of bucket.
2. With air pressure sensor to make which more balanced.
3. Heat transfer pressure, temperature, speed and time are adjustable.
4. Adjustable with different angle and front-back position on bottom of mould.
5. Tension control system makes heat transfer film smooth but not folded.
6. High precise sensor combines with double times speed to collect film.
7. Pattern of heat transfer is stable and precise, especially suitable for bar code and OR code.
8. XYZ triaxial servo matches the taper and work track which enable photo to be heat transferred in a high accurate position.
9. This is a patent machine with patent number: ZL201620065617.6
Parameters
| Max. size of product: | H280*Φ320mm |
| Speed of transfer: | 300-450pcs/h |
| Timing of transfer: | 4seconds/pcs |
| Air pressure: | 5-7mpa |
| Power supply: | 220v 50-60hz 3.8kw 35a |
| Dimension: | 1430*1200*1900mm |
| Weight: | ≈880kgs |

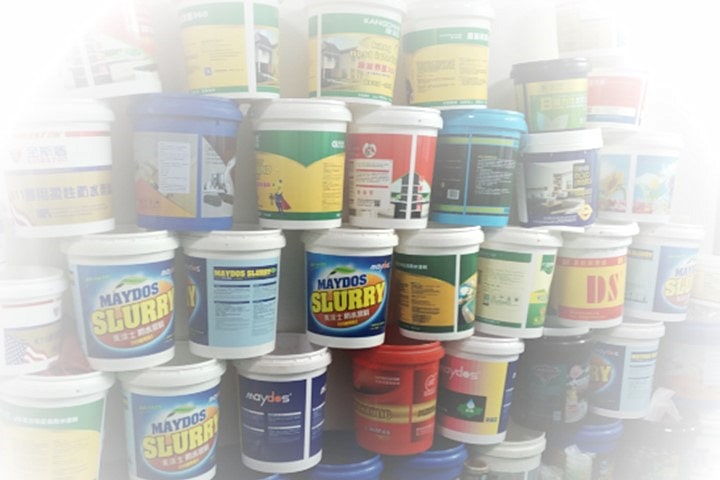

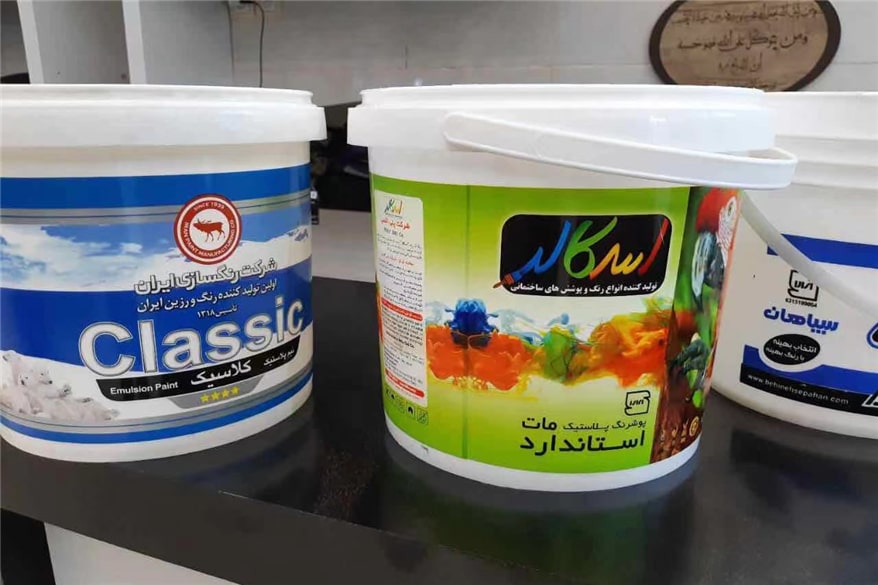

Printed samples
For more operating video of our machine please visit YouTube from below link
Package & Delivery
Every machine is under standard package standard.
Machine vacuumed if necessary and packed into fumigation free wooden package.
Package delivered to seaport/airport by direct line truck.
For more questions and details please ask us directly, we will reply you ASAP.
