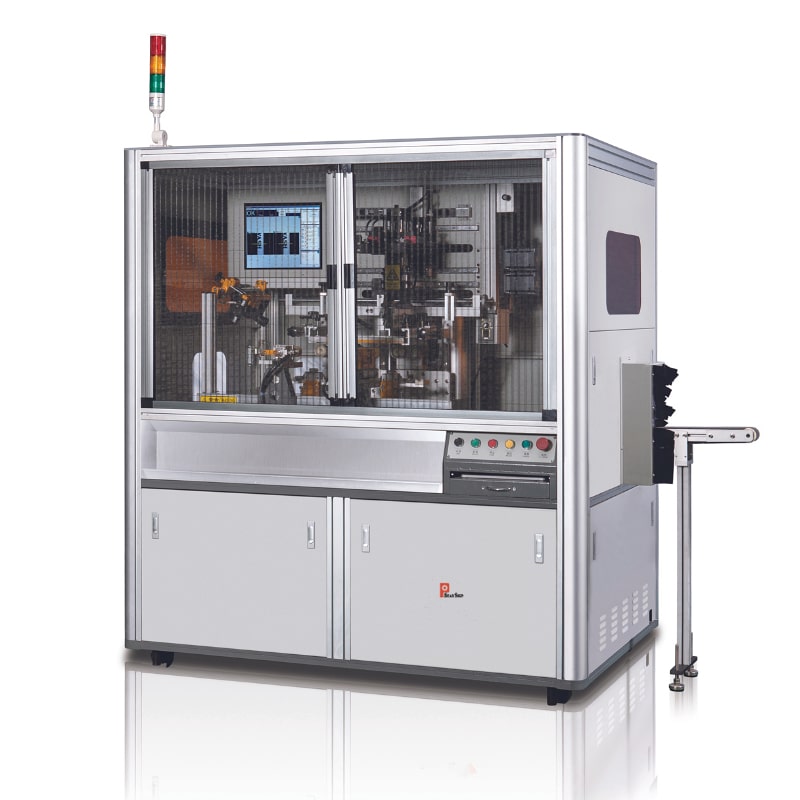

High-Accuracy Servo Control Automatic Screen Printing Machine
Application
This multifunction printing machine is well built for printing on all kinds of shapes of bottles and any other container with not only one color but also multicolor by repeating printing. Besides, users can also combine two or more sets of machines for two or more color printing. The machine can print whole circles in only one printing. Its innovative curing system provides higher efficiency.
Products to print: glass bottles, plastic bottles, cosmetic containers, plastic cups, pill vials, water bottles etc.
Description
Reviews
Description
1. PLC control and touchscreen display
2. Servo drive transmission system, whole printing includes movement of the print head, screen frame, etc. are controlled by servo motor, which contributes to higher accuracy and efficiency.
3. Automatic uploading and unloading system with conveyor belt and multi-axis servo robot.
4. Flame treatment device (optional) before printing
5. With video positioning vision system (optional), especially for cylindrical products who has no registration point.
6. With LED UV curing or UV curing (optional) after printing
7. Easy and quick changeable tooling parts for different products.
8. With security warning systems.
Parameters
| Speed of printing: | 1800-2400pcs/h | |
| Size of printing: | Oval and round shape | Square and irregular shape |
| Max. Diameter: 15-90mm | Max. Height: 30-180mm | |
| Max. Length, width: 20-100mm | Max. Height: 30-180mm | |
| Air consumption: | 0.6-0.8mpa | |
| Power supply: | 380v 50Hz | |
| Curing system: | LED, UV | |
Printed samples
For more operating video of our machine please visit YouTube from below link
Package & Delivery
Every machine is under standard package standard.
Machine vacuumed if necessary and packed into fumigation free wooden package.
Package delivered to seaport/airport by direct line truck.
For more questions and details please ask us directly, we will reply you ASAP.
