Multicolor Automatic Bottle Screen Printing Machine
Application

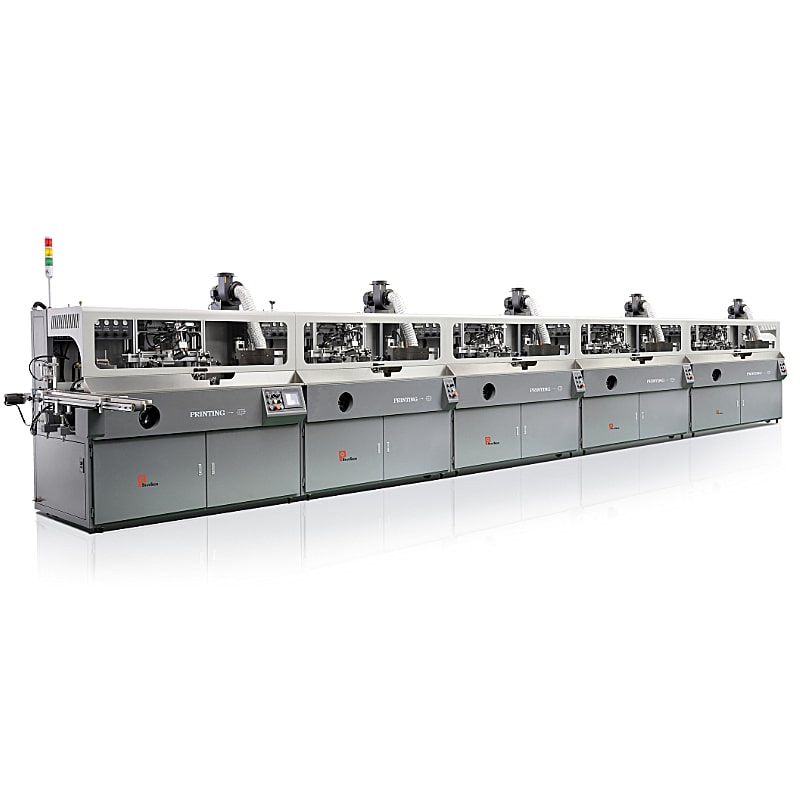

This is an automatic multifunctional multicolor screen printing machine. It is designed for printing on different patterns of bottles and other shapes of objects, such as round shapes, oval shapes, and even square shapes. Its innovative transmission system is very steady in passing bottles and easy to shift between different types of bottles. The linear design of the machine enables the use of 5-screen printing units for 5-color printing. As a combined production line, it owns high efficiency and high performance, especially for multicolor printing. The printed item is requested to have a registration point on its body.
Products to print: cylindrical, oval, and square shapes in different materials can be printed, such as plastic tubes, cosmetic bottles, shampoo bottles, medical vials, metal cans, pens, and so on.
Description
Reviews
Description
1. As a combination ranges from 2-unit to 8-unit for printing with 2-color to 8-color, each unit is an independent printer.
2. With reliable PLC control and touchscreen display.
3. The main parts adopted famous brands like SMC, Panasonic, Schneider, etc.
4. With a set of automatic loading systems with conveyor belts and optional vacuum robots for feeding purposes.
5. With a set of perfect transmission systems that enable products delivered fast and smoothly.
6. With a design for an oval and square bottle -- 180° rotating automatically.
7. With an automatic flame treatment device before printing.
8. LED UV lamp curing system and Electric UV curing system are optional after printing.
9. Automatic unloading system
Parameters
| Speed of printing: |
4000pcs/hr. (Round product); 5000pcs/hr. (Oval product) 4000pcs/hr. (square product) |
| Size of printing: |
Dia. 20-100mm; Length 25-300mm (round product) Width 25-120mm; Length 25-300mm (oval product) Width 40-100mm; Length 100-200mm (square product) |
| Printing stroke: | 60-315mm(perimeter) |
| Printing precision: | ±0.06-0.08mm |
| Air consumption: | 0.6mpa |
| Gas consumption: | 0.15mpa |
| Size of machine: | 2000*1000*1500mm |
| Weight of machine: | 800kgs |
| Power supply: | Voltage 380vac, 3-phase, 50 Hz |
| (Customizable) |
Unit UV machine power 5kw Motor power 1.5kw |
Main procedure: Automatic uploading machine/manually-----Transmission-----Preheat treatment-----Printing-----UV/LED curing-----Printing------UV/LED curing-----Automatic unloading
Printed samples
For more operating video of our machine please visit YouTube from below link
Package & Delivery
Every machine is under standard package standard.
Machine vacuumed if necessary and packed into fumigation free wooden package.
Package delivered to seaport/airport by direct line truck.
For more questions and details please ask us directly, we will reply you ASAP.
