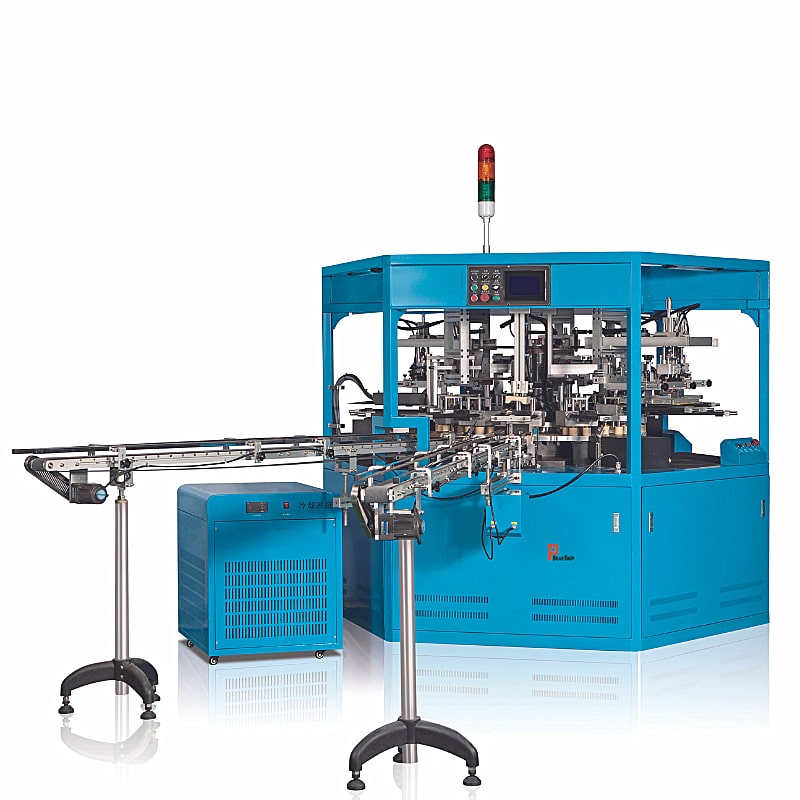

Five Colors Automatic Rotation Screen Printing Machine
Application
This 5-color automatic rotary type screen printing machine is specially designed for multicolor printing on the surface of glass, plastic and metal bottle in the shape of cylindrical, conical and square. Its innovative LED UV curing system can save much more energy than traditional way, also can save much more time in production. Products to print: glass bottle, beer bottle, drinking water bottle, beverage bottle, glass cup etc.
Description
Reviews
Description
1. Controlled by PLC and touch screen display
2. Automatic uploading and unloading system with conveyor belt
3. Pretreatment with flame before printing
4. With five printing platforms for five colors
5. With LED UV curing system after printing
6. Changeable tooling parts for different products.
7. “No bottle no print” warning system
8. Security door, if it is opened machine stops.
Parameters
| Speed of printing: | 1800-2400pcs/hr. |
| Size of printing: |
Max. Diameter 15-90mm Max. Length 25-330mm |
| Air consumption: | 0.6mpa |
| Power supply: | 380v 50Hz |
| Curing system: | LED, UV |

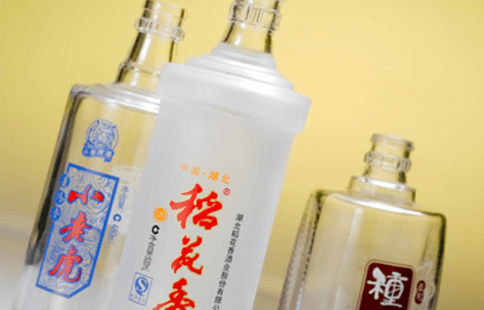

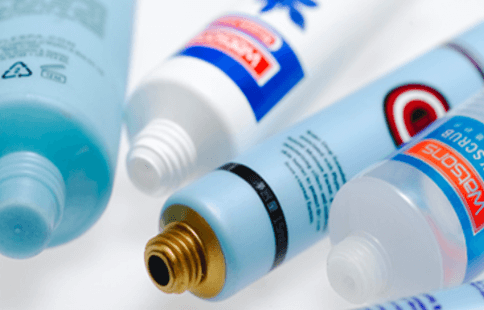

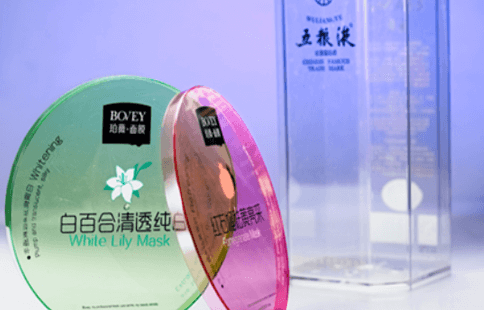

Printed samples
For more operating video of our machine please visit YouTube from below link
Package & Delivery
Every machine is under standard package standard.
Machine vacuumed if necessary and packed into fumigation free wooden package.
Package delivered to seaport/airport by direct line truck.
For more questions and details please ask us directly, we will reply you ASAP.
