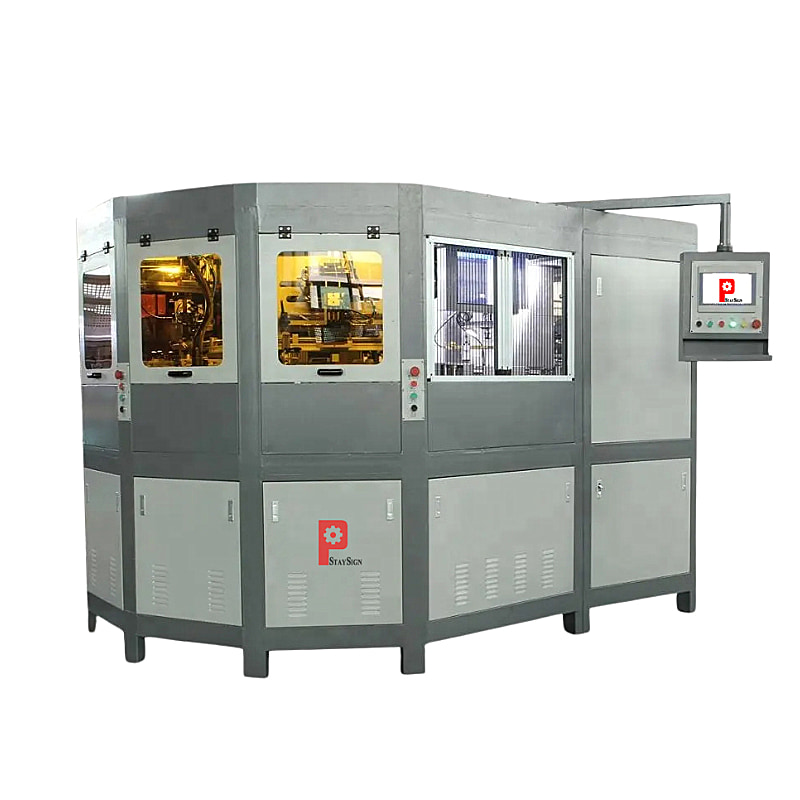

CNC Bottle Automatic Screen Printing Machine
Application
This is our latest multicolor screen printing machine with a servo drive. It is applied to print on any shape of bottle, vial, or container with a multicolor 360°full circle in one printing action. The whole servo drive system is more precise and efficient in production. What to speak of is that the machine can be applied for multifunction purposes according to the customer’s request, for example, the second color/platform can be replaced with hot stamping purposes. The handling by the operator is particularly easy due to the clear arrangement of related fixtures. This reduces the time for set up and maintenance.
Products to print: glass bottles, plastic tubes, drink bottles, water tumblers, perfume bottles, plastic cups, glass vials etc.
Description
Reviews(2)
Description
1. Programmable logic controller and touchscreen display
2. Servo motor driven transmission system, print head and screen frame, etc. makes higher accuracy.
3. Automatic loading and unloading system with speed adjustable conveyor belt and multi-axis servo robot.
4. The jigs on the machine are controlled by the servo motor in rotation.
5. For cylindrical products without registration points, we have an optional video positioning system to figure out. Also can avoid printing on the molding line on the bottle.
6. With LED UV curing or electric UV curing system (optional).
7. All the tooling parts like jigs can be changed quickly for other products to print.
8. With security systems.
Parameters
| Speed of printing: | 2400-3000pcs/h |
| Size of printing: |
Max. Diameter: 15-90mm Max. Length: 20-330mm |
| Air consumption: | 0.6-0.8mpa |
| Power supply: | 380v 3phase 50Hz |
| Curing system: | LED, UV |
Printed samples
For more operating video of our machine please visit YouTube from below link
Package & Delivery
Every machine is under standard package standard.
Machine vacuumed if necessary and packed into fumigation free wooden package.
Package delivered to seaport/airport by direct line truck.
For more questions and details please ask us directly, we will reply you ASAP.
