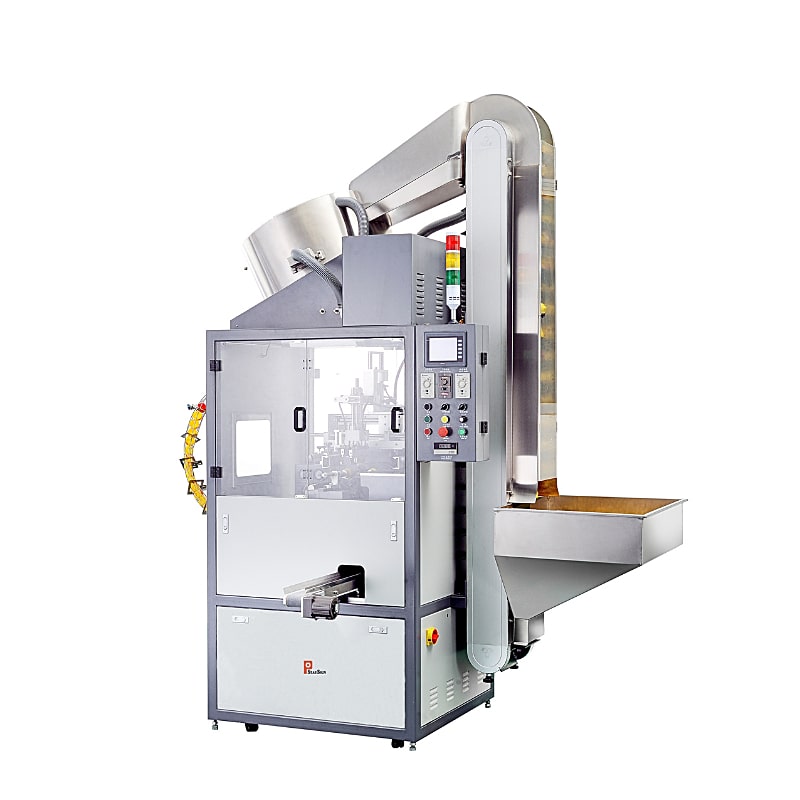

Automatic Screen Printing Machine for Cylinder Products
Application
This is an automatic screen printing machine for bottle caps and other curved or round surface items. The machine is with one printing station to do one color printing purpose. But also combine another color machine for doing two colors printing purposes. Even machines can be designed for hot stamping or screen printing and hot stamping purposes.
The machine is also can be customized for different applications.

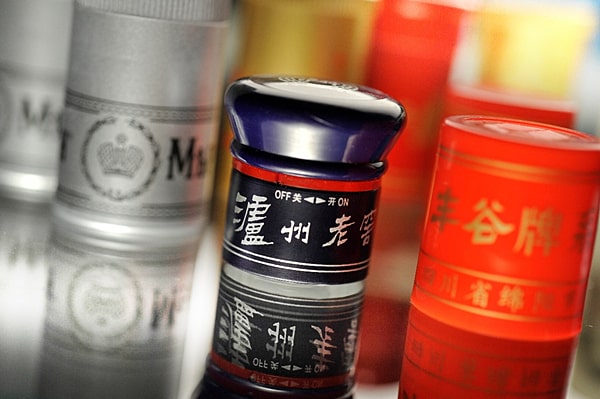

Products to print: plastic cap, aluminum cap, bottle cover, plastic lids, bottle lid, bottle closure, wine cap, etc.
Description
Reviews
Description
1. Programmable logic controller and touchscreen display
2. Servo motor driven transmission system, print head and screen frame, etc. makes higher accuracy.
3. Automatic loading and unloading system with speed adjustable conveyor belt and multi-axis servo robot.
4. The jigs on the machine are controlled by the servo motor in rotation.
5. For cylindrical products without registration points, we have an optional video positioning system to figure out. Also can avoid printing on the molding line on the bottle.
6. With LED UV curing or electric UV curing system (optional).
7. All the tooling parts like jigs can be changed quickly for other products to print.
8. With security systems.
Parameters
| Speed of stamping: | 4000-5000pcs/h |
| Size of stamping: |
Max. diameter Φ15-60mm Max. length 25-200mm |
| Air consumption: | 0.6-0.8mpa |
| Power supply: | 220v 3kw |
| Dimension: | 2800*2600*2900mm |
Printed samples
For more operating video of our machine please visit YouTube from below link
Package & Delivery
Every machine is under standard package standard.
Machine vacuumed if necessary and packed into fumigation free wooden package.
Package delivered to seaport/airport by direct line truck.
For more questions and details please ask us directly, we will reply you ASAP.
