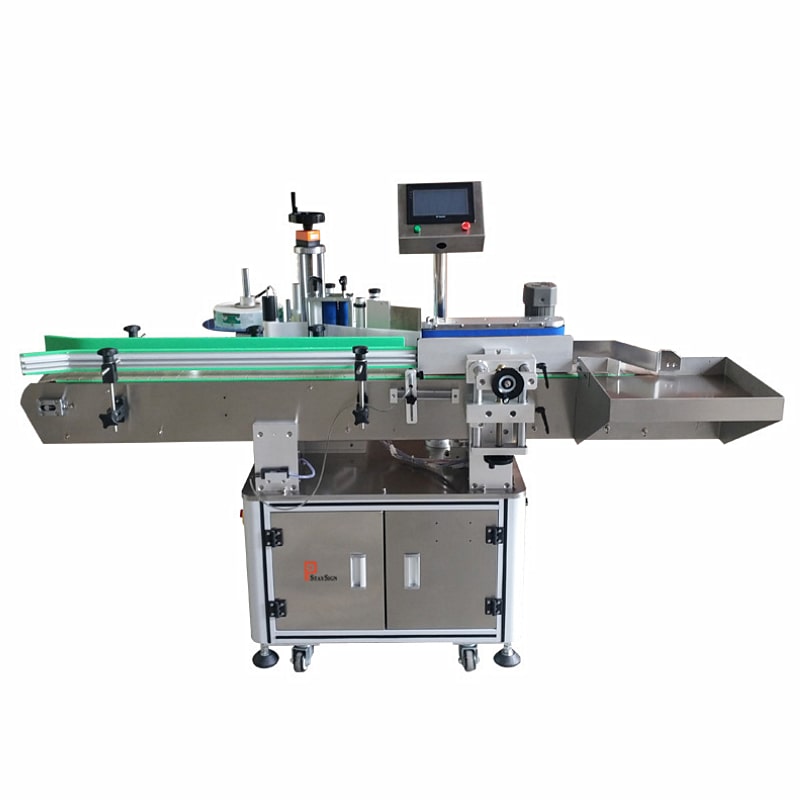

Automatic Round Bottle Labeling Machine(Rubbing type)
Application
This labeling machine is widely used in food, cosmetic, chemical, pharmaceutical, and other industries. It is specially designed for all kinds of cylindrical, tapered object labeling. Not only one side but also two sides in front and back side of the bottle can be labeled in the located place. The machine can work alone or connect to the production line.
Date printer can be added for printing production date, batch lot, and expiry date while labeling.
Products to print: water bottles, glass bottles, plastic bottles, perfume vials, milk bottles, wine bottles etc.
Description
Reviews
Description
1. Control system we use Panasonic from Japan, which keeps high stability and a low failure rate.
2. Machine built with touch screen display, direct visual interface for easy operation. Optional languages settled. It is easy to adjust all electrical parameters and has a counting function, which is helpful for production management.
3. Detection system we use a German LEUZE/Italian Datalogic label sensor and a Japanese Panasonic product sensor, which are sensitive to label and product, so that can ensure high accuracy and stable labeling performance.
4. The machine will alarm when a problem occurs, such as a label spill, label broken, or other malfunctions.
5. Main parts of the machine we use stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust.
6. Equip with a voltage transformer to adapt to local voltage.
Parameters
| Speed of labeling: | 1800-4800pcs/h |
| Size of bottle: | Max. diameter Φ25-100mm |
| Size of label: | Length 20-290mm |
| Width/height: 20-130mm | |
| Type of label: | adhesive sticker, transparent or opaque |
| Size of label roll: | ID: Ø76mm; OD: ≤260mm |
| Labeling tolerance: | ±1mm |
| Air consumption: | 0.4-0.6mpa |
| liquefied gas: | 0.15mpa |
| Power supply: | 220v 50hz 655w |
| Dimension: | 1935*1200*1530mm |
| Weight: | ≈185kgs |
Printed samples
For more operating video of our machine please visit YouTube from below link
Package & Delivery
Every machine is under standard package standard.
Machine vacuumed if necessary and packed into fumigation free wooden package.
Package delivered to seaport/airport by direct line truck.
For more questions and details please ask us directly, we will reply you ASAP.
