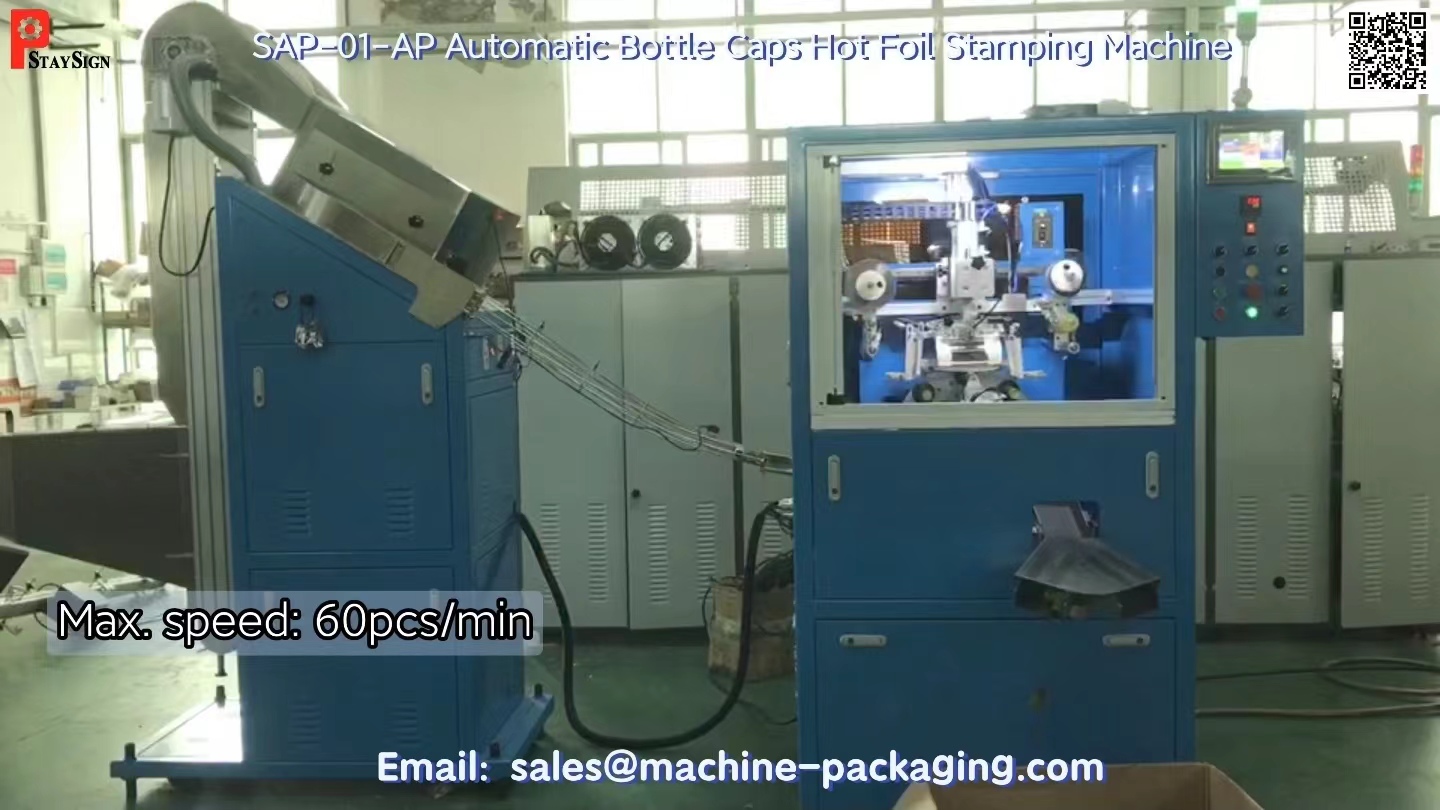

Automatic Bottle Cap Hot Foil Stamping Machine
Application
This multifunction hot foil stamping machine is well applied for stamping on the side (we have top and side stamping machines too) of cylindrical bottle caps or closures for one whole circle process. The machine is also can be customized for screen printing on top and side or pad printing on top.
Products to print: plastic caps, aluminum caps, bottle covers, cap plugs, plastic lids, tube end caps, plastic pipe caps, plastic caps and plugs, aluminum caps, bottle lids, bottle closures, wine capsules, wine caps, etc.
Description
Reviews
Description
1. Operation through PLC and touch screen display.
2. Automatic cap uploading and feeding system supported, automatic cap removing ejector.
3."No item no stamp/print" warning system.
4. With a safety door warning system, if a user opens any door of the machine, the machine stops running at once.
5. Low air pressure, lack of foil, cap not loaded, low temperature, all these happened machine alarms.
6. Cap counting system, pieces per roll of foil counting system.
7. Different sizes of caps are available for the machine by changing corresponding tooling parts.
Parameters
| Speed of stamping: | 2400-3300pcs/h |
| Size of stamping: |
Max. diameter Φ15-34mm Max. length Φ25-60mm |
| Air consumption: | 0.6-0.8mpa |
| Power supply: | 380v 3p 50hz (or customized) |
| Dimension: |
Main machine:1000*1000*1800mm Uploading machine:2200*1000*1700mm |
| Weight: | 1350kgs approx. |
Printed samples
For more operating video of our machine please visit YouTube from below link
Package & Delivery
Every machine is under standard package standard.
Machine vacuumed if necessary and packed into fumigation free wooden package.
Package delivered to seaport/airport by direct line truck.
For more questions and details please ask us directly, we will reply you ASAP.
