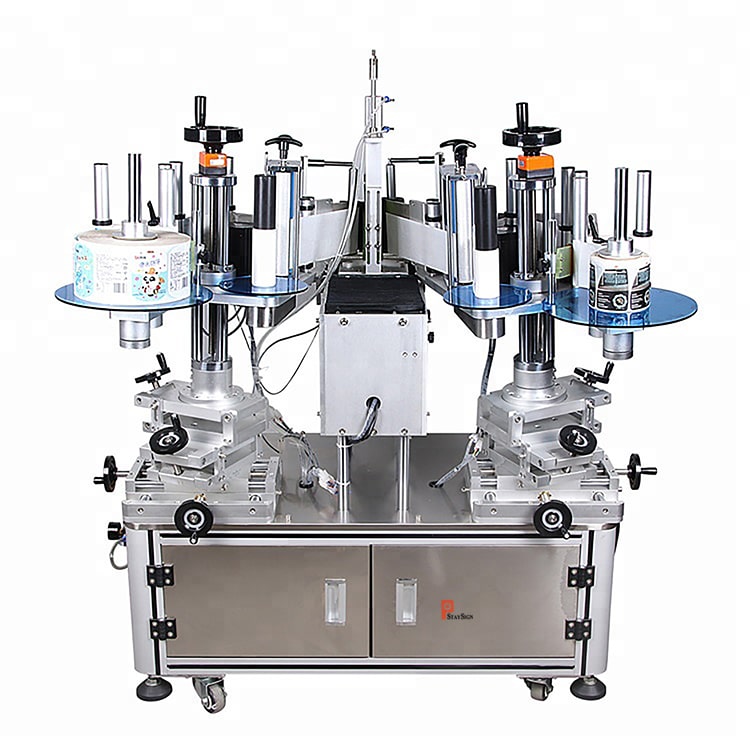

Semi Automatic Double Side Bottle Labeling Machine
Application
This labeling machine is used for all kinds of double-sided labeling purposes. Such as flat bottles, cosmetic boxes, etc.
The machine can apply labels on both sides of the bottle at the same time easily and efficiently
Date printer can be added to print production date, batch lot, and expiry date while labeling.
Description
Reviews
Description
1. Control system we use Panasonic from Japan, which keeps high stability and a low failure rate.
2. Machine built with touch screen display, direct visual interface for easy operation. Optional languages settled. It is easy to adjust all electrical parameters and has a counting function, which is helpful for production management.
3. Detection system we use a German LEUZE/Italian Datalogic label sensor and a Japanese Panasonic product sensor, which are sensitive to label and product, so that can ensure high accuracy and stable labeling performance.
4. The machine will alarm when a problem occurs, such as a label spill, label broken, or other malfunctions.
5. Main parts of the machine we use stainless steel and anodized senior aluminum alloy, with high corrosion resistance and never rust.
6. Equip with a voltage transformer to adapt to local voltage.
Parameters
| Speed of labeling: | 900-1800pcs/h |
| Size of bottle: | Length 20-200mm Width 20-150 Height 20-320 |
| Length 15-200mm | |
| Size of label: | Width/height 15-180mm |
| Type of label: | adhesive sticker, transparent or opaque |
| Size of label roll: | ID: Ø76mm; OD: ≤260mm |
| Labeling tolerance: | ±0.5 mm |
| Air supply | 0.4-0.6mpa |
| Power supply: | 220v 50hz 990w |
| Dimension: | 1280*1110*1300mm |
| Weight: | ≈50kgs |
Printed Samples
For more operating video of our machine please visit YouTube from below link
Package & Delivery
Every machine is under standard package standard.
Machine vacuumed if necessary and packed into fumigation free wooden package.
Package delivered to seaport/airport by direct line truck.
For more questions and details please ask us directly, we will reply you ASAP.
